Palm Springs California
May 2021
Solar System


Array Layout and DC/AC Disconnects Shown
with Utility Company Service Feed

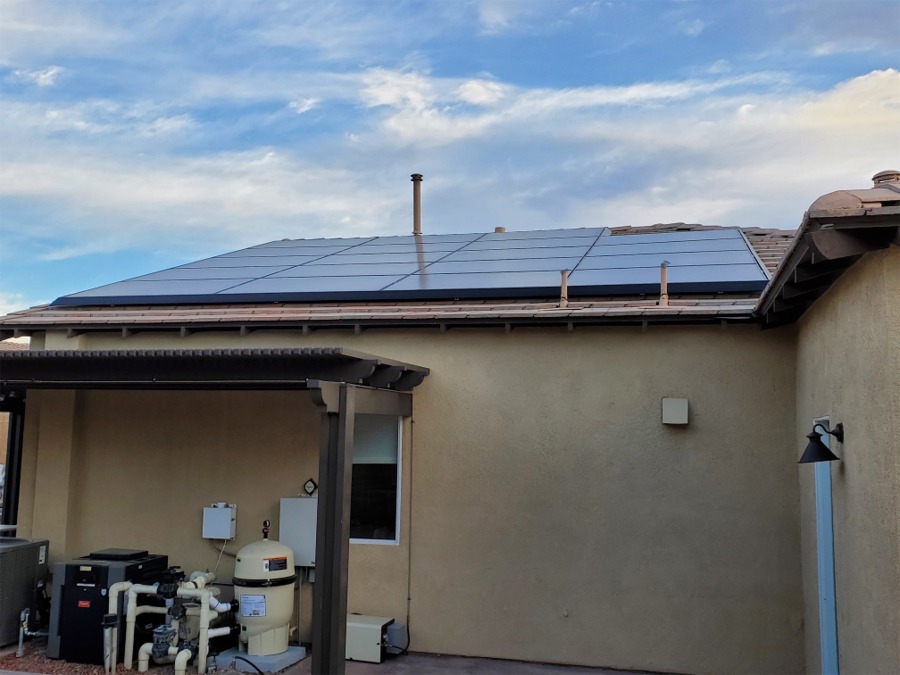

19 Solar Panels

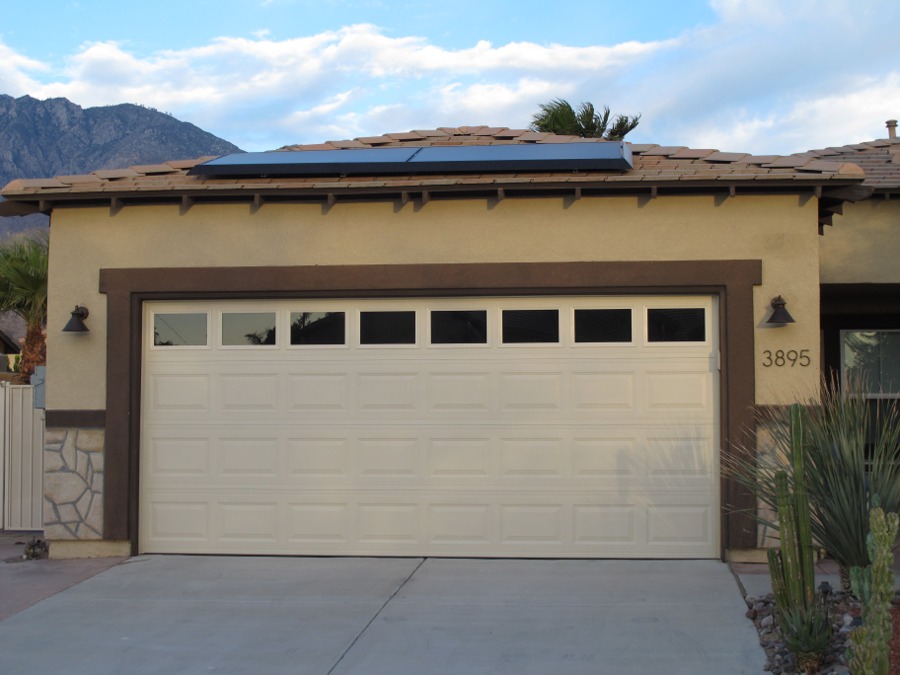

Plus 2 More Solar Panels on Roof Top
AC/DC Disconnects mounted on Side Wall


Plus 2 More Solar Panels
For a Total of 23 Panels Solar System


Solar System Roof Feed - Side Wall DC/AC Disconnects

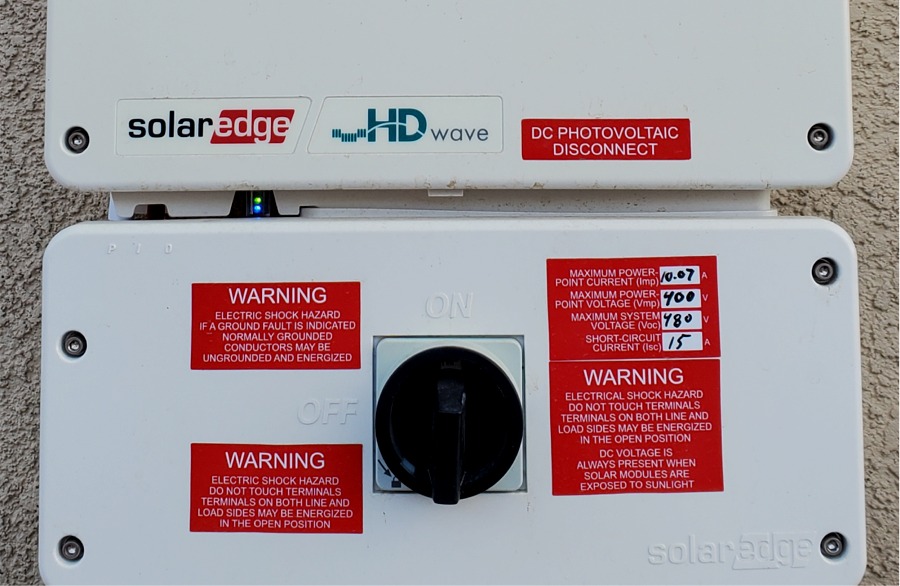

Left knob - Panel DC Disconnect and Inverter Disconnect
Right Lever - Solar System Disconnect to AC Distribution System

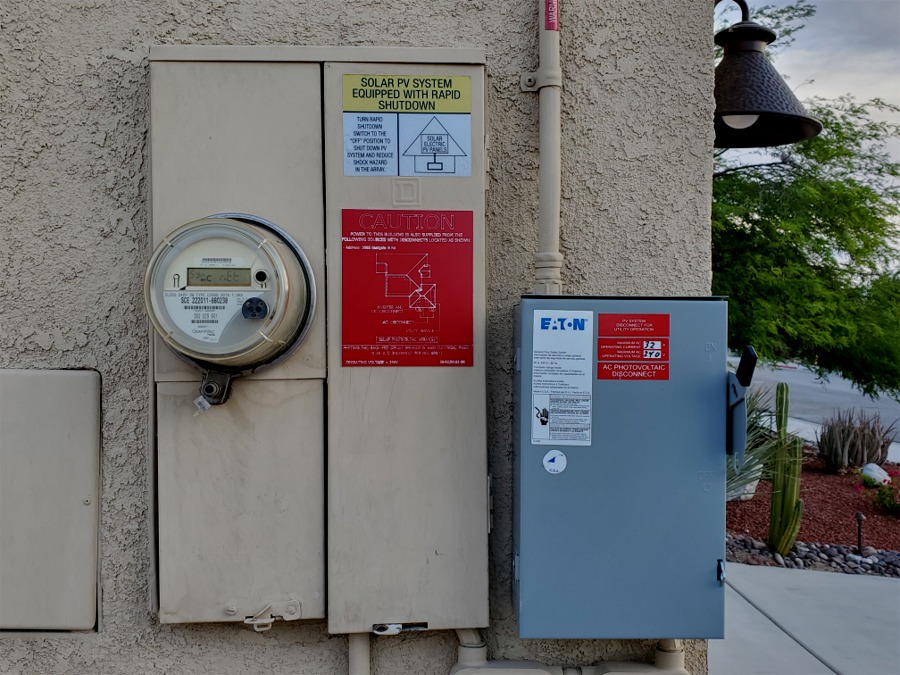

Left - Utility Meter
Mid-Box - AC House Distribution Breakers
Right Gray Box - AC Solar System Feed Disconnect

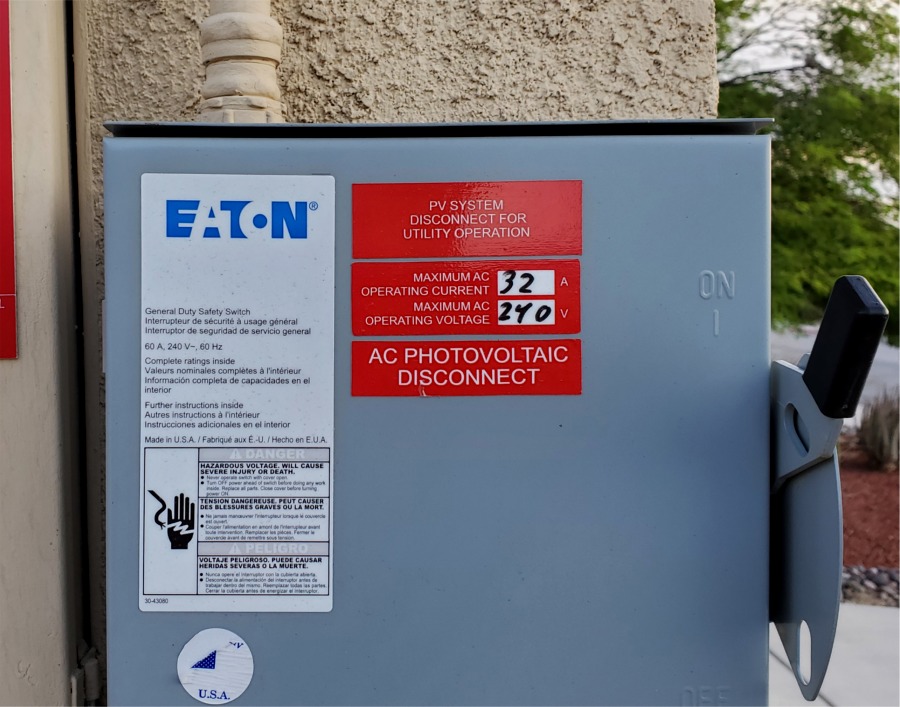

AC Solar System Feed Disconnect



Please Note: This Solar System has no Battery Storage System
Any Daylight Solar Power Excess is Back Feed to the
Utility Grid and is Meter Credited for later use after Daylight



Solar System & House
Distribution Circuit Breakers
